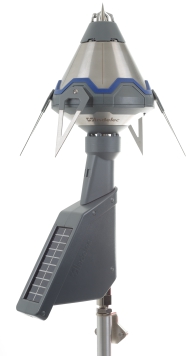

Prevectron 3 S60TC

Self Testing Air Terminal with Integrate Strike Counter

US-1543TC
The UL Certification is for the S60 air terminal only

The S60TC combines the Prevectron S60 and the US-1585 self test module.  The S60 air terminal is UL Certified (File OVHC.E493371)

P3OptiMax

Specifications

Catalog Number:

US-1543TC

Efficiency (per NF C 17-102):

ΔT

60µs

Standard Deviation ESE/simple rod:

σ

σPDA < 0.4σPTS

Lightning Current withstand Test (10/350µs):

Iimp

100kA

Max. current withstand test:

Imax

230kA

Operating Principals

Detection of Downward Leader::

Continuous measuring of electric field gradient (ΔE/ΔT)

Upward Streamer Development:

Patented Optimax® Technology for optimized streamer development conditions

Upward streamer initiation:

sparking by high Voltage Impulse

Internal Circuits:

6 Independent Synchronized Circuits

Central Rod:

Continuous 3/4" nickel plated copper

Housing:

316 Stainless Steel, Electromagnetic Sheild

Air Terminal Test Module:

Returns air terminal test results, number of strikes recorded, and solar panel battery level

Remote Testing Protocol:

2.4GhZ RF Remote up to 300 ft. range

Power Supply

LiFePo4 Battery 3 200mA.h ‐ 3.2V

Charging:

Monocrystalline glass-coated solar panel

Strike Counter:

EN 62 561‐6 compliant lightning strike counter  Patented contactless technology

Maintenance:

Replaceable Modules (factory)

Warranty:

5 years (1 year on battery)

Dimensions:

14.37" overall. Body is 8" x 9.9"

Weight:

19.1 lbs

Remote for Self-Testing Air Terminals (sold separately)

Specifications

Catalog Number:

US-1591

Application:

Test all Prevectron 3 Air Terminals on Site

Communication protocol:

2.4 GhZ  with Range to 300 ft.

Power:

3 each LR6/AA 1.5v battery

Warranty:

12 months

US-1591diagram
